Jaguh Motorcycle


In 1999, Modenas built a small cruiser model based on popular Kawasaki Vulcan cruiser series. The model is aimed for bikers who wish to own large American cruiser motorcycles but cannot afford to own them due to very high taxes on imported motorcycles placed by the government and also due to refusal of the banks to finance loans on large motorcycles

Jaguh 175

  • Max power: 16 PS (11.8 kW) @ 8,500 rpm
  • Max torque: 13.7 N·m (1.4 kgf·m) @ 7,500 rpm
  • Engine type: SOHC 2-valve 4-stroke single-cylinder, air-cooled
  • Displacement: 174 cc
  • Bore x stroke: 65 x 52.4 mm
  • Compression ratio: 9.0:1
  • Fuel tank capacity: 14 L
  • Dry weight: 132 kg
  • Transmission: 5-speed
  • Max speed: About 130 ~ 140 km/h
Code BN175-A310
Overall Length 2155 mm
Overall Width 765 mm
Overall Height 1025 mm
Wheel Base 1460 mm
Road Clearance n/a
Dry Weight 132 Kg
Fuel Tank Capacity 14 Litres
Fuel Consumption n/a
Front Tyre 90/90 - 17
Rear Tyre 130/90 - 15
Max. Power 11.8kW (16.0 PS) at 8500 rpm
Max. Torque 13.7 N.m (1.4kgf.m) at 7500 rpm



Engine
Type SOHC 4-stroke single cylinder
Bore X Stroke 65 x 52.4 mm
Displacement 174 cm.cubic
Compression Ratio 9.0 : 1
Carburetor MIKUNI BS 28
Ignition System Magneto to CDI
Starting System Electric
Cooling System Air
Lubrication Forced lub. Wet

Transmission
Type 5-speed return
Clutch Wet multi disk
Primary Reduction Ratio 3.666 (77/21)
Final Reduction Ratio 2.933 (44/15)
Driving System Chain

Chassis
Type Steel pipe double cradle
Front Suspension Telescopic
Rear Suspension Trailing swing arm / Double Shock Absorber
Front Brake Disc, double piston
Rear Brake Drum

Electrical System
Battery 12V 9Ah


Modenas (Motorsikal dan enjin nasional Sdn Bhd-Motorcycle and Engine manufacturer) is the manufacturer of Jaguh,jaguh has twin brothers in other part of the world..the Boss they call it in thailand and Bajjaj Eliminator in India and kawasaki eliminator in america and other part of the world such as in philipine and europe.

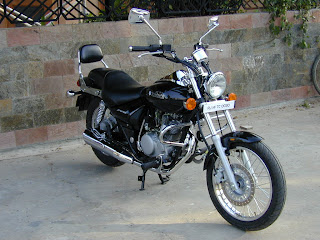

this is picture of kawasaki eliminator 175 of bajjaj india..but there is more than meets the eye,there is so many type and cc of eliminator from 125 cc ,175 cc,250 cc,600 cc and 1000 cc.Jaguh using kawasaki engine but as the motorcycle manufactured in malaysia by Modenas(there is no kawasaki name mark on jaguh Motorcycle)
